Hi Michel,
I have one last question.

In the diagram below_
[cid:image001.png at 01D93BE6.685EA410]

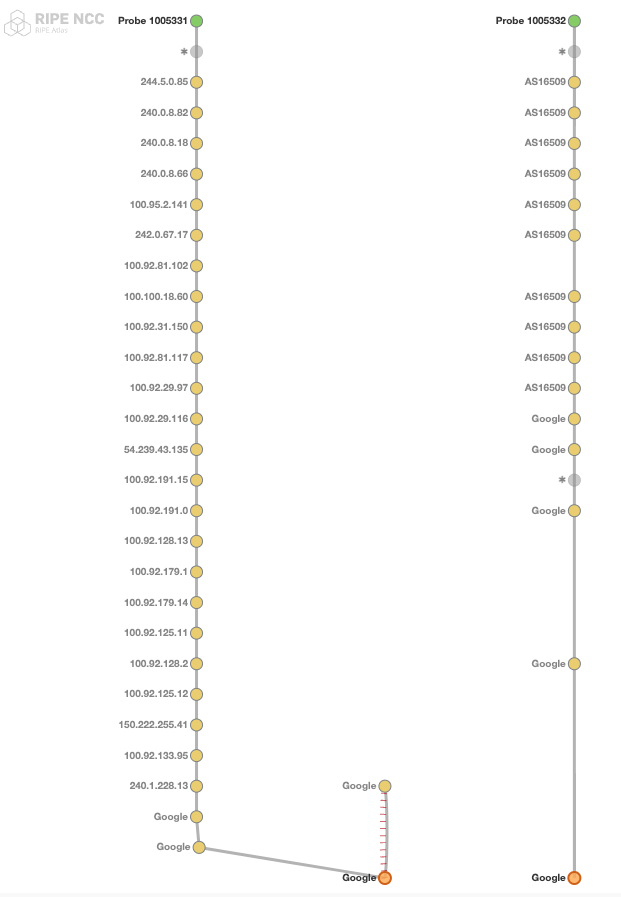

The route on the left is marked as “Target not reached” and the one on the right is marked as “Target reached” but from both location I’m able to reach the website hosted on the target, which is the difference ?

Regards,
Roberto
From: ripe-atlas <ripe-atlas-bounces at ripe.net> on behalf of roberto.lucignani at caleidos.it <roberto.lucignani at caleidos.it>
Date: Wednesday, 8 February 2023 at 16:43
To: Michel Stam <mstam at ripe.net>
Cc: Qasim Lone <qlone at ripe.net>, Alexander Burke via ripe-atlas <ripe-atlas at ripe.net>, Emile Aben <eaben at ripe.net>
Subject: Re: [atlas] Measurement question
Hi Michael,
thank you very much for the explanation. I made another measure using UDP and now the collected routes make more sense. I was not aware of the 5 hops without response.

Glad we spot out a particular case 😊

Regards,
Roberto

From: Michel Stam <mstam at ripe.net>
Date: Wednesday, 8 February 2023 at 14:08
To: roberto.lucignani at caleidos.it <roberto.lucignani at caleidos.it>
Cc: Qasim Lone <qlone at ripe.net>, Emile Aben <eaben at ripe.net>, Alexander Burke via ripe-atlas <ripe-atlas at ripe.net>
Subject: Re: [atlas] Measurement question
Hello Roberto,

I’ve done the exact same measurement too, using the 3 types of traceroute available (ICMP, UDP and TCP).
UDP:
(https://atlas.ripe.net/measurements/49826077/#general)
[cid:image006.png at 01D93BE6.5F571640]

TCP:
(https://atlas.ripe.net/measurements/49826078/#general)
[cid:image007.png at 01D93BE6.5F571640]

ICMP:
(https://atlas.ripe.net/measurements/49826076/#general)
[cid:image008.png at 01D93BE6.5F571640]

The way the traceroute works in Atlas is that if 5 hops have been received without response, the trace skips over to TTL 255 and ends the traceroute. This is what you see with TCP and ICMP. The traceroute stops for lack of response. To prove that, I’ve run the trace again, skipping hops 1-7, for both ICMP and TCP:

https://atlas.ripe.net/measurements/49826868/#general
[cid:image009.png at 01D93BE6.5F571640]

https://atlas.ripe.net/measurements/49826959/#general
[cid:image010.png at 01D93BE6.5F571640]

  *   100.64.0.0/10 is CGN (Carrier Grade NAT), RFC 6598.
  *   Looking at the traceroute differently:

     *   Hop 1 (AS16509, Amazon EU West, Amazon-02)
     *   Hop 2-7 CGN
     *   Hop 8-9 (AS unknown, but between UK and US, IPROU3-ARIN, so Amazon IP routing 3)
     *   Hop 10 (AS unknown, but between UK and US, IPROU3-ARIN/ARMP-ARIN, Amazon IP routing)
     *   Hop 11-15 CGN
     *   Hop 16 (AS unknown,  presumably US, IPROU3-ARIN/ARMP-ARIN, I presume Amazon IP routing still)
     *   Hop 17-19 CGN
     *   Hop 20 (AS13335, Cloudflare US)

So it seems like every cloud zone interconnect (amazon Europe west, US, then Cloudflare) transitted goes through a CGN setup. Not sure but I can understand if this confuses some types of traffic.

I don’t think there’s anything wrong with your setup, but the results are interesting. I’ve copied a couple of our researchers onto the mail as they may be interested in this as well.
